Standard Baffle Serie

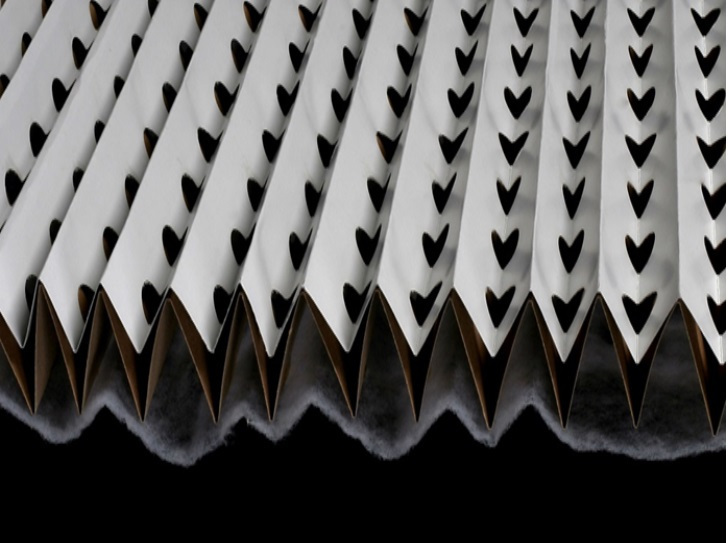

Standard Baffle Series (single stage), is best used with slow drying coatings such as high solid enamels, epoxies, asphalts, varnish and other tacky-dry coatings with large particle size characteristics. Part numbers: 20S, 25S, 36S, 1mS.

PRESSURE DROP

0.05-inch wc (12 pa) @ 100 fpm (0.50 m/s)

0.12-inch wc (30 pa) @ 150 fpm (0.75 m/s)

0.22-inch wc (55 pa) @ 200 fpm (1.00 m/s)

RECOMMENDED AIR VELOCITY

49-197 fpm (0.25-1.00 m/s), subject to spray operation

RECOMMENDED MAXIMUM PRESSURE DROP

0.5 to >1-inch wc (128 to >256 pa), subject to fan motor

PAINT ARRESTANCE:  > 98%

HOLDING CAPACITY:  > 6.0 lbs/20″ pad filter (2.39 lbs/sf or 11.67 kg/m2).

Customized Baffles

.  Measure the exhaust frame opening from inside the channel.  Measure the width (or height) and length of the opening. Send your “actual” measurement and we will reply with your custom part number and description.



Poly-Back Baffle Serie

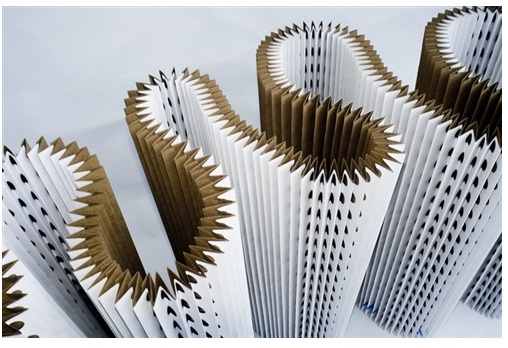

The Poly-Back Baffle (two-stages) is best used with liquid coatings such as enamels, primers, urethanes and other flash-dry coatings with fine particle size characteristics. Part Numbers: 20P, 25P, 36P, 1mP.

PRESSURE DROP

0.10-inch wc (25 pa) @ 100 fpm (0.50 m/s)

0.15-inch wc (37 pa) @ 150 fpm (0.75 m/s)

0.25-inch wc (62 pa) @ 200 fpm (1.00 m/s)

RECOMMENDED AIR VELOCITY

49-197 fpm (0.25-1.00 m/s), subject to spray operation

RECOMMENDED MAXIMUM PRESSURE DROP

0.5 to >1-inch wc (128 to >256 pa), subject to fan motor

PAINT ARRESTANCE:  > 99%

HOLDING CAPACITY:  > 6.5 lbs/20″ pad filter (2.42 lbs/sf or 11.82 kg/m2).
